ISO7330FC

Triple-Channel Digital Isolators

Texas Instruments

ISO7330FC Features

* 1 Signaling Rate: 25 Mbps

* Integrated Noise Filter on the Inputs

* Default Output 'High' and 'Low' Options

* Low Power Consumption: Typical ICC per Channel at 1 Mbps:

* ISO7330: 1 mA (5 V Supplies), 0.8 mA (3.3 V Supplies)

* ISO7331: 1.4 mA (5 V Supp

ISO7330FC General Description

ISO733x provide galvanic isolation up to 3000 VRMS for 1 minute per UL and 4242 VPK per VDE. These devices have three isolated channels comprised of logic input and output buffers separated by a silicon dioxide (SiO2) insulation barrier. ISO7330 has all three channels in the same direction while ISO.

ISO7330FC Datasheet (2.00 MB)

Rating: 1 ★ (2 votes)

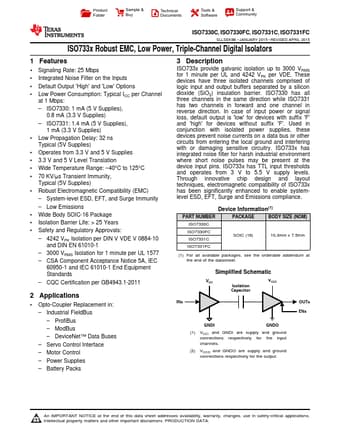

ISO7330FC Datasheet Preview — Preview of ISO7330FC PDF

Datasheet Details

Part number:

ISO7330FC

Manufacturer:

Texas Instruments ↗

File Size:

2.00 MB

Description:

Triple-channel digital isolators.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO7330C, ISO7330FC, ISO7331C, ISO7331FC SLLSEK9B .
