ISO7340C - Quad-Channel Digital Isolators

Texas Instruments

📥 Download Datasheet

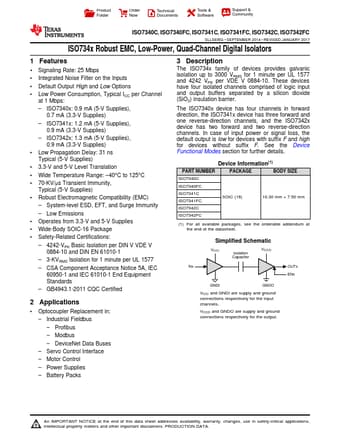

ISO7340C Datasheet Preview — Preview of ISO7340C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISO7340C
Manufacturer	Texas Instruments ↗
File Size	1.25 MB
Description	Quad-Channel Digital Isolators
Datasheet	ISO7340C-etcTI.pdf

ISO7340C Product details

Description

The ISO734x family of devices provides galvanic isolation up to 3000 VRMS for 1 minute per UL 1577 and 4242 VPK per VDE V 0884-10.

Features

1 Signaling Rate: 25 Mbps.
Integrated Noise Filter on the Inputs.
Default Output High and Low Options.
Low Power Consumption, Typical ICC per Channel at 1 Mbps:.
ISO7340x: 0.9 mA (5-V Supplies), 0.7 mA (3.3-V Supplies).
ISO7341x: 1.2 mA (5-V Supplies), 0.9 mA (3.3-V Supplies).
ISO7342x: 1.3 mA (5-V Supplies), 0.9 mA (3.3-V Supplies).
Low Propagation Delay: 31 ns Typical (5-V Supplies).
3.3-V and 5-V Level Translatio.
