ISO7341-Q1, ISO7340-Q1 Datasheet - Texas Instruments

ISO7341-Q1 Quad-Channel Digital Isolators

The ISO734x-Q1 family of devices provides galvanic isolation up to 3000 VRMS for 1 minute per UL 1577 and 4242 VPK per VDE V 0884-10. These devices have four isolated channels comprised of logic input and output buffers separated by a silicon dioxide (SiO2) insulation barrier. The ISO7340-Q1 device .

ISO7341-Q1 Features

* 1 Qualified for Automotive Applications

* AEC-Q100 Qualified With the Following Results:

* Device Temperature Grade 1:

* 40°C to 125°C Ambient Operating Temperature Range

* Device HBM Classification Level 3A

* Device CDM Classification Level C6

ISO7340-Q1-etcTI.pdf

This datasheet PDF includes multiple part numbers: ISO7341-Q1, ISO7340-Q1. Please refer to the document for exact specifications by model.

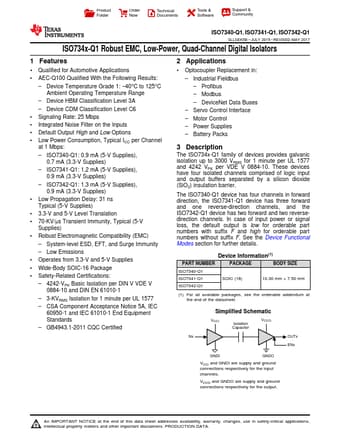

ISO7341-Q1 Datasheet Preview Page 2 ISO7341-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

ISO7341-Q1, ISO7340-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.20 MB

Description:

Quad-channel digital isolators.

Note:

This datasheet PDF includes multiple part numbers: ISO7341-Q1, ISO7340-Q1.
Please refer to the document for exact specifications by model.
