ISO7341FC, ISO7340C Datasheet - Texas Instruments

ISO7341FC Quad-Channel Digital Isolators

The ISO734x family of devices provides galvanic isolation up to 3000 VRMS for 1 minute per UL 1577 and 4242 VPK per VDE V 0884-10. These devices have four isolated channels comprised of logic input and output buffers separated by a silicon dioxide (SiO2) insulation barrier. The ISO7340x device has f.

ISO7341FC Features

* 1 Signaling Rate: 25 Mbps

* Integrated Noise Filter on the Inputs

* Default Output High and Low Options

* Low Power Consumption, Typical ICC per Channel at 1 Mbps:

* ISO7340x: 0.9 mA (5-V Supplies), 0.7 mA (3.3-V Supplies)

* ISO7341x: 1.2 mA (5-V Supp

ISO7340C-etcTI.pdf

This datasheet PDF includes multiple part numbers: ISO7341FC, ISO7340C. Please refer to the document for exact specifications by model.

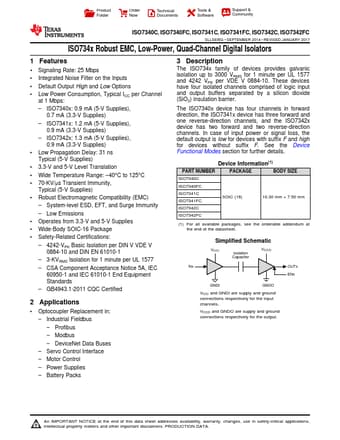

ISO7341FC Datasheet Preview Page 2 ISO7341FC Datasheet Preview Page 3

Datasheet Details

Part number:

ISO7341FC, ISO7340C

Manufacturer:

Texas Instruments ↗

File Size:

1.25 MB

Description:

Quad-channel digital isolators.

Note:

This datasheet PDF includes multiple part numbers: ISO7341FC, ISO7340C.
Please refer to the document for exact specifications by model.
