LDC1314, LDC1312 - Multi-Channel 12-Bit Inductance to Digital Converter

Texas Instruments

The LDC1314 by Texas Instruments is a Multi-Channel 12-Bit Inductance to Digital Converter. Below is the official datasheet preview.

📥 Download Datasheet

LDC1314 Multi-Channel 12-Bit Inductance to Digital Converter by Texas Instruments - Datasheet Preview — Official preview page of the LDC1314 Multi-Channel 12-Bit Inductance to Digital Converter datasheet (Texas Instruments).

Datasheet Details

Part number	LDC1314, LDC1312
Manufacturer	Texas Instruments
File Size	1.75 MB
Description	Multi-Channel 12-Bit Inductance to Digital Converter
Datasheet	LDC1312-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LDC1314, LDC1312. Please refer to the document for exact specifications by model.

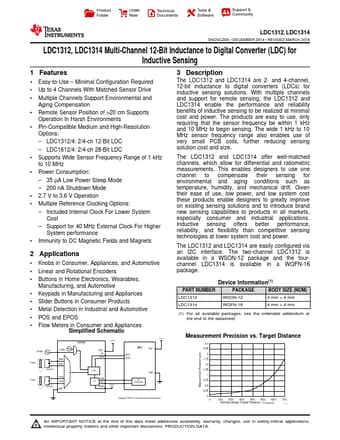

Additional preview pages of the LDC1314 datasheet.

LDC1314 Product details

Description

The LDC1312 and LDC1314 are 2- and 4-channel, 12-bit inductance to digital converters (LDCs) for inductive sensing solutions.

Features

1 Easy-to-Use.
Minimal Configuration Required.
Up to 4 Channels With Matched Sensor Drive.
Multiple Channels Support Environmental and Aging Compensation.
Remote Sensor Position of >20 cm Supports Operation In Harsh Environments.
Pin-Compatible Medium and High-Resolution Options:.
LDC1312/4: 2/4-ch 12-Bit LDC.
LDC1612/4: 2/4-ch 28-Bit LDC.
Supports Wide Sensor Frequency Range of 1 kHz to 10 MHz.
Power Consu.
