LF412C Dual JFET-Input Operational Amplifier

This device is a low-cost, high-speed, JFET-input operational amplifier with very low input offset voltage and a specified maximum input offset voltage drift. It requires low supply current yet maintains a large gain bandwidth product and a fast slew rate. In addition, the matched high-voltage JFET .

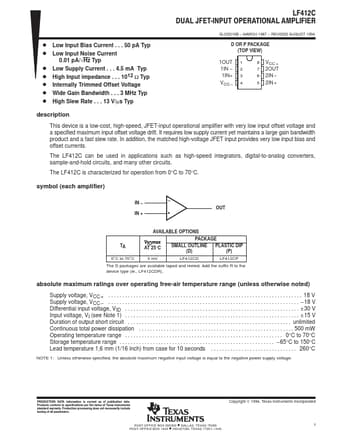

LF412C DUAL JFETĆINPUT OPERATIONAL AMPLIFIER D Low Input Bias Current . . . 50 pA Typ D Low Input Noise Current 0.01 pA/√Hz Typ D Low Supply Current . . . 4.5 mA Typ D High Input impedance . . . 1012 Ω Typ D Internally Trimmed Offset Voltage D Wide Gain Bandwidth . . . 3 MHz Typ D High Slew Rate . . . 13 V/µs Typ SLOS010B MARCH 1987 REVISED AUGUST 1994 D OR P PACKAGE (TOP VIEW) 1OUT 1 1IN 2 1IN+ 3 VCC 4 8 VCC + 7 2OUT 6 2IN 5 2IN + descript.
