LF412QML Low Drift Dual JFET Input Operational Amplifier

LF412QML Description

LF412QML www.ti.com SNOSAO7A * DECEMBER 2010 * REVISED MARCH 2013 LF412QML Low Offset, Low Drift Dual JFET Input Operational Amplif.
This device is a low cost, high speed, JFET input operational amplifier with very low input offset voltage and ensured input offset voltage drift.

LF412QML Features

* 1
* 23 Input Offset Voltage Drift: 20 μV/°C (Max)
* Low Input Bias Current: 50 pA (Typ)
* Low Input Noise Current: 0.01 pA/√Hz (Typ)
* Wide Gain Bandwidth: 2.7 MHz (Min)
* High Slew Rate: 8V/μs (Min)
* High Input Impedance: 1012Ω
* Low Total Har

LF412QML Applications

* such as high speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage and drift, low input bias current, high input impedance, high slew rate and wide bandwidth. Connection Diagram Figure 1. TO-99 Package Figure 2. CDIP Package 1

📥 Download Datasheet

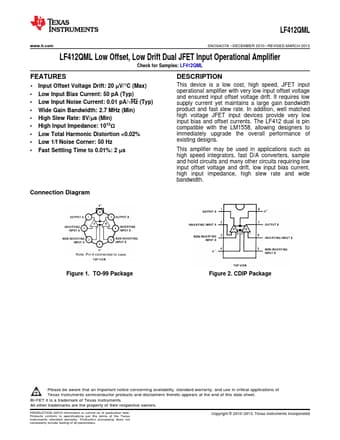

Preview of LF412QML PDF
datasheet Preview Page 2 datasheet Preview Page 3
