LF412JAN Low Drift Dual JFET Input Operational Amplifier

LF412JAN Description

Not Recommended For New Designs LF412JAN www.ti.com SNOSAQ7A * DECEMBER 2010 * REVISED MARCH 2013 LF412JAN Low Offset, Low Drift D.
This device is a low cost, high speed, JFET input operational amplifier with very low input offset voltage and ensured input offset voltage drift.

LF412JAN Features

* 1
* 23 Input Offset Voltage Drift: 30 μV/°C (Max)
* Low Input Bias Current: 50 pA (Typ)
* Wide Gain Bandwidth: 3 MHz (Typ)
* High Slew Rate: 7V/μs (Min)
* High Input Impedance: 1012Ω
* Low Total Harmonic Distortion

LF412JAN Applications

* such as high speed integrators, fast D/A converters, sample and hold circuits and many other circuits requiring low input offset voltage and drift, low input bias current, high input impedance, high slew rate and wide bandwidth. Connection Diagram Simplified Schematic Figure 1. Dual-In-Line Packa

📥 Download Datasheet

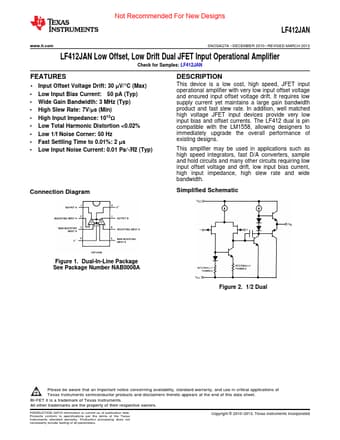

Preview of LF412JAN PDF
datasheet Preview Page 2 datasheet Preview Page 3
