LM20343 Adjustable Frequency Synchronous Buck Regulator

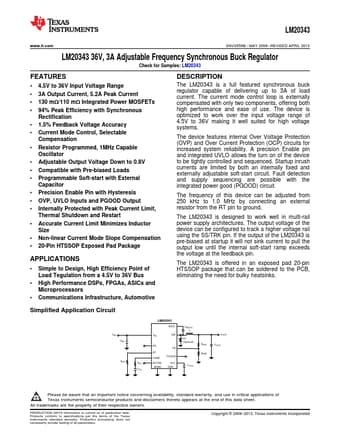

📥 Download Datasheet Datasheet Preview Page 1

Description

LM20343 www.ti.com SNVS559B * MAY 2008 * REVISED APRIL 2013 LM20343 36V, 3A Adjustable Frequency Synchronous Buck Regulator Check f.
The LM20343 is a full featured synchronous buck regulator capable of delivering up to 3A of load current.

📥 Download Datasheet

Preview of LM20343 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* 1
* 2 4.5V to 36V Input Voltage Range
* 3A Output Current, 5.2A Peak Current
* 130 mΩ/110 mΩ Integrated Power MOSFETs
* 94% Peak Efficiency with Synchronous Rectification
* 1.5% Feedback Voltage Accuracy
* Current Mode Control, Selectable Compensation

Applications

* Simple to Design, High Efficiency Point of Load Tegulation from a 4.5V to 36V Bus
* High Performance DSPs, FPGAs, ASICs and Microprocessors
