LM2512A

24-Bit RGB Display Interface Serializer

Texas Instruments

LM2512A Features

* 1

* 2 24-bit RGB Interface Support up to 640 x 480 VGA Format

* Optional 24 to 18-bit Dithering

* Optional Look Up Table for Independent Color Correction

* MPL-1 Physical Layer

* SPI Interface for Look Up Table Control and Loading

* Low Power Consumptio

LM2512A General Description

The LM2512A is a MPL Serializer (SER) that performs a 24-bit to 18-bit Dither operation and serialization of the video signals to Mobile Pixel link (MPL) levels on only 3 or 4 active signals. An optional Look Up Table (Three X 256 X 8 bit RAM) is also provided for independent color correction. 18-bi.

LM2512A Datasheet (1.17 MB)

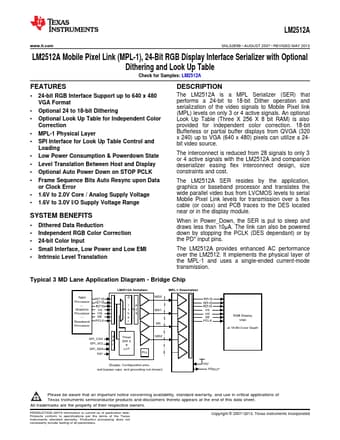

LM2512A Datasheet Preview — Preview of LM2512A PDF

Datasheet Details

Part number:

LM2512A

Manufacturer:

Texas Instruments ↗

File Size:

1.17 MB

Description:

24-bit rgb display interface serializer.
LM2512A www.ti.com SNLS269B

* AUGUST 2007

* REVISED MAY 2013 LM2512A Mobile Pixel Link (MPL-1), 24-Bit RGB Display Interface Serial.
