LM385B-1.2, LM385-1.2 - Micropower Voltage References

LM385B-1.2 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM285-1.2, LM385-1.2, LM385B-1.2 SLVS075J * APRIL 19.
These micropower, two-terminal, band-gap voltage references operate over a 10-μA to 20-mA current range and feature exceptionally low dynamic impedanc.

LM385B-1.2 Features

* 1 Operating Current Range
* LM285-1.2: 10 μA to 20 mA
* LM385-1.2: 15 μA to 20 mA
* LM385B-1.2: 15 μA to 20 mA
* 1% and 2% Initial Voltage Tolerance
* Reference Impedance
* LM385-1.2: 1 Ω MAX at 25°C
* All devices: 1.5 Ω MAX over Full

LM385B-1.2 Applications

* Portable Meter References
* Portable Test Instruments
* Battery-Operated Systems
* Current-Loop Instrumentation

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM385B-1.2, LM385-1.2. Please refer to the document for exact specifications by model.

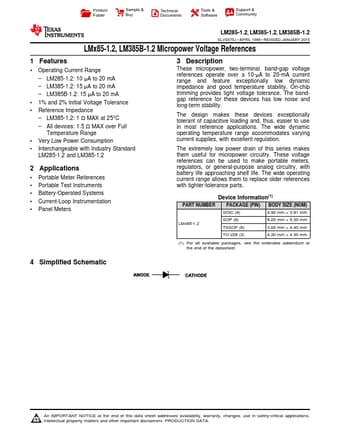

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LM385B-1.2, LM385-1.2
Manufacturer
Texas Instruments ↗
File Size
1.67 MB
Datasheet
LM385-1.2-etcTI.pdf
Description
Micropower Voltage References
Note
This datasheet PDF includes multiple part numbers: LM385B-1.2, LM385-1.2.
Please refer to the document for exact specifications by model.
