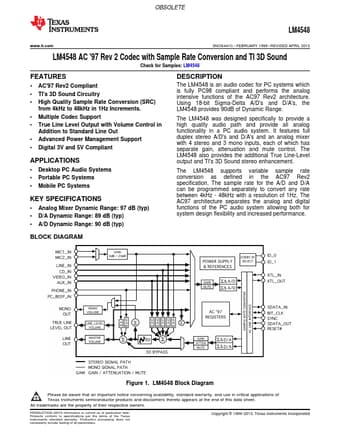

Part number: LM4548
Manufacturer: Texas Instruments (https://www.ti.com/)
File Size: 557.44KB
Download: 📄 Datasheet
Description: AC97 Rev2 Codec
1
*2 AC'97 Rev2 Compliant
* TI's 3D Sound Circuitry
* High Quality Sample Rate Conversion (SRC)
from 4kHz to 48kHz in 1Hz Increments.
* Multiple Codec Sup.
* Desktop PC Audio Systems
* Portable PC Systems
* Mobile PC Systems
KEY SPECIFICATIONS
* Analog Mixer D.
The LM4548 is an audio codec for PC systems which is fully PC98 compliant and performs the analog intensive functions of the AC97 Rev2 architecture. Using 18-bit Sigma-Delta A/D's and D/A's, the LM4548 provides 90dB of Dynamic Range.
The LM4548 was d.
