LM53600-Q1

2.1-MHz Automotive Step-Down DC/DC Converter

LM53600-Q1 Features

* Qualified for automotive applications

* AEC-Q100 qualified with the following results:

* Device temperature grade 1:

* 40°C to 125°C ambient operating temperature range

* Device HBM classification level 2

* Device CDM classification level C5

LM53600-Q1 General Description

The LM53600-Q1 and LM53601-Q1 synchronous buck regulator devices are optimized for automotive applications, providing an output voltage of 5 V, 3.3 V, or an adjustable output. Load current up to 650 mA is supported by the LM53600-Q1, while the LM53601Q1 supports up to 1000 mA. Advanced high-speed c.

LM53600-Q1 Datasheet (2.36 MB)

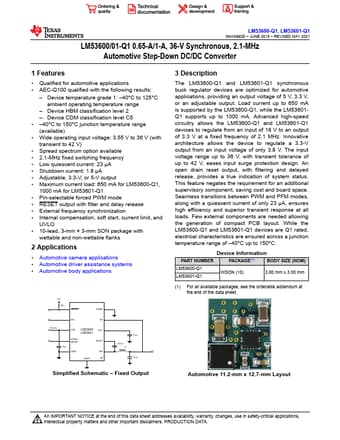

Preview of LM53600-Q1 PDF

Datasheet Details

Part number:

LM53600-Q1

Manufacturer:

Texas Instruments ↗

File Size:

2.36 MB

Description:

2.1-mhz automotive step-down dc/dc converter.
LM53600-Q1, LM53601-Q1 SNAS660D

* JUNE 2015

* REVISED MAY 2021 LM53600/01-Q1 0.65-A/1-A, 36-V Synchronous, 2.1-MHz Automotive Step-Dow.
