LM53603, LM53602 Datasheet - Texas Instruments

LM53603 2.1 MHz Step-Down Converters

The LM53603 and LM53602 buck regulators are specifically designed for 12-V industrial and automotive applications, providing an adjustable output voltage from 3.3 V to 10 V at 3 A or 2 A, from an input voltage of up to 36 V. Advanced high-speed circuitry allows the device to regulate from an input o.

LM53603 Features

* 1 3-A or 2-A Maximum Load Current

* Input Voltage Range From 3.5 V to 36 V: Transients to 42 V

* Adjustable Output Voltage From 3.3 V to 10 V

* 2.1-MHz Fixed Switching Frequency

* ±2% Output Voltage Tolerance

* 40°C to 150°C Junction Temperat

LM53602-etcTI.pdf

This datasheet PDF includes multiple part numbers: LM53603, LM53602. Please refer to the document for exact specifications by model.

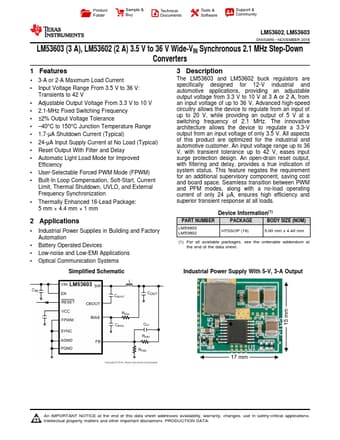

LM53603 Datasheet Preview Page 2 LM53603 Datasheet Preview Page 3

Datasheet Details

Part number:

LM53603, LM53602

Manufacturer:

Texas Instruments ↗

File Size:

1.55 MB

Description:

2.1 mhz step-down converters.

Note:

This datasheet PDF includes multiple part numbers: LM53603, LM53602.
Please refer to the document for exact specifications by model.
