LMV7235 Datasheet, Comparator, Texas Instruments

LMV7235 Features

  • Comparator
  • 1 VS = 5 V, TA = 25°C (Typical Values Unless Otherwise Specified)
  • Propagation Delay: 75 ns
  • Low supply Current: 65 µA
  • Rail-to-Rail Input

PDF File Details

Part number:

LMV7235

Manufacturer:

Texas Instruments ↗

File Size:

1.18MB

Download:

📄 Datasheet

Description:

Rail-to-rail input comparator. The LMV7235 and LMV7239 are ultra low power, low voltage, 75-ns comparators. They are ensured to operate over the full supply voltage

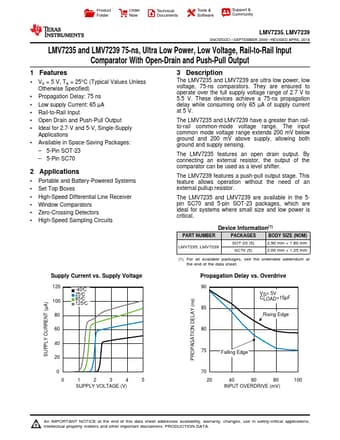

Datasheet Preview: LMV7235 📥 Download PDF (1.18MB)
Page 2 of LMV7235 Page 3 of LMV7235

LMV7235 Application

  • Applications
  • Available in Space-Saving Packages:
      – 5-Pin SOT-23
      – 5-Pin SC70 2 Applications
  • Port

TAGS

LMV7235
Rail-to-Rail
Input
Comparator
Texas Instruments
