LMV721

10-MHz LOW-NOISE LOW-VOLTAGE LOW-POWER OPERATIONAL AMPLIFIERS

LMV721 Features

* 1

* Power-Supply Voltage Range: 2.2 V to 5.5 V

* Low Supply Current: 930 mA/Amplifier at 2.2 V

* High Unity-Gain Bandwidth: 10 MHz

* Rail-to-Rail Output Swing

* 600-Ω Load: 120 mV From Either Rail at 2.2 V

* 2-kΩ Load: 50 mV From Either Rail at 2.2 V

LMV721 General Description

ORDERING INFORMATION The LMV721 (single) and LMV722 (dual) are low-noise low-voltage low-power operational amplifiers that can be designed into a wide range of applications. The LMV721 and LMV722 have a unity-gain bandwidth of 10 MHz, a slew rate of 5 V/ms, and a quiescent current of 930 mA/amplifie.

LMV721 Datasheet (1.05 MB)

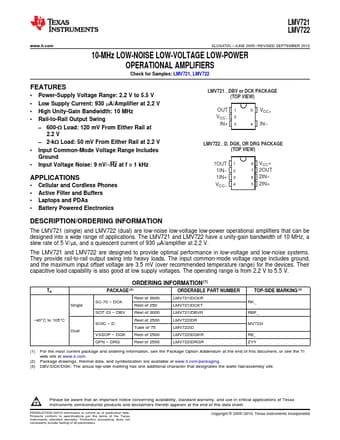

Preview of LMV721 PDF

Datasheet Details

Part number:

LMV721

Manufacturer:

Texas Instruments ↗

File Size:

1.05 MB

Description:

10-mhz low-noise low-voltage low-power operational amplifiers.
LMV721 LMV722 www.ti.com SLOS470C

* JUNE 2005

* REVISED SEPTEMBER 2010 10-MHz LOW-NOISE LOW-VOLTAGE LOW-POWER OPERATIONAL AMPLIFIERS.
