LMV721-N

LOW-POWER OPERATIONAL AMPLIFIERS

LMV721-N Features

* 1

* 2 (For Typical, 5 V Supply Values; Unless Otherwise Noted)

* Ensured 2.2V and 5.0V Performance

* Low Supply Current LMV721-N/2 930µA/Amplifier at 2.2V

* High Unity-Gain Bandwidth 10MHz

* Rail-to-Rail Output Swing

* at 600Ω Load 120mV from Either Rai

LMV721-N General Description

The LMV721-N (Single) and LMV722 (Dual) are low noise, low voltage, and low power op amps, that can be designed into a wide range of applications. The LMV721-N/LMV722 has a unity gain bandwidth of 10MHz, a slew rate of 5V/us, and a quiescent current of 930uA/amplifier at 2.2V. The LMV721-N/722 are d.

LMV721-N Datasheet (1.24 MB)

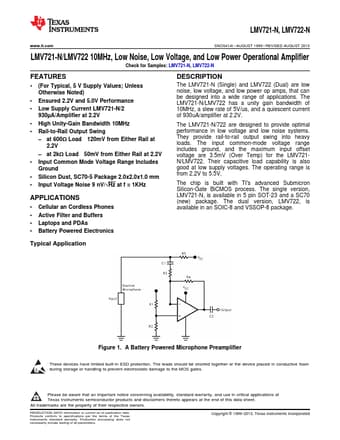

Preview of LMV721-N PDF

Datasheet Details

Part number:

LMV721-N

Manufacturer:

Texas Instruments ↗

File Size:

1.24 MB

Description:

Low-power operational amplifiers.
LMV721-N, LMV722-N www.ti.com SNOS414I

* AUGUST 1999

* REVISED AUGUST 2013 LMV721-N/LMV722 10MHz, Low Noise, Low Voltage, and Low P.
