LMV7219

7-ns 2.7-V to 5-V Comparator

LMV7219 Features

* 1 (VS = 5 V, TA = 25°C, Typical Values Unless Specified)

* Propagation Delay 7 ns

* Low Supply Current 1.1 mA

* Input Common Mode Voltage Range Extends 200 mv Below Ground

* Ideal for 2.7-V and 5-V Single Supply Applications

* Internal Hysteresis Ensu

LMV7219 General Description

The LMV7219 is a low-power, high-speed comparator with internal hysteresis. The LMV7219 operating voltage ranges from 2.7 V to 5 V with push-pull railto-rail output. This device achieves a 7-ns propagation delay while consuming only 1.1 mA of supply current at 5 V. The LMV7219 inputs have a common m.

LMV7219 Datasheet (1.43 MB)

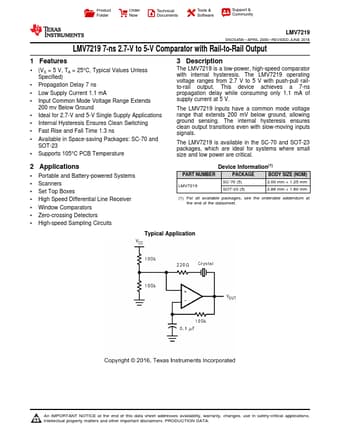

Preview of LMV7219 PDF

Datasheet Details

Part number:

LMV7219

Manufacturer:

Texas Instruments ↗

File Size:

1.43 MB

Description:

7-ns 2.7-v to 5-v comparator.
Product Folder Order Now Technical Documents Tools & Software Support & Community LMV7219 SNOS458I

* APRIL 2000

* REVISED JUNE 20.
