LMV722-N, LMV721-N - LOW-POWER OPERATIONAL AMPLIFIERS

LMV722-N Description

LMV721-N, LMV722-N www.ti.com SNOS414I * AUGUST 1999 * REVISED AUGUST 2013 LMV721-N/LMV722 10MHz, Low Noise, Low Voltage, and Low P.
The LMV721-N (Single) and LMV722 (Dual) are low noise, low voltage, and low power op amps, that can be designed into a wide range of applications.

LMV722-N Features

* 1
* 2 (For Typical, 5 V Supply Values; Unless Otherwise Noted)
* Ensured 2.2V and 5.0V Performance
* Low Supply Current LMV721-N/2 930µA/Amplifier at 2.2V
* High Unity-Gain Bandwidth 10MHz
* Rail-to-Rail Output Swing
* at 600Ω Load 120mV from Either Rai

LMV722-N Applications

* Cellular an Cordless Phones
* Active Filter and Buffers
* Laptops and PDAs

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LMV722-N, LMV721-N. Please refer to the document for exact specifications by model.

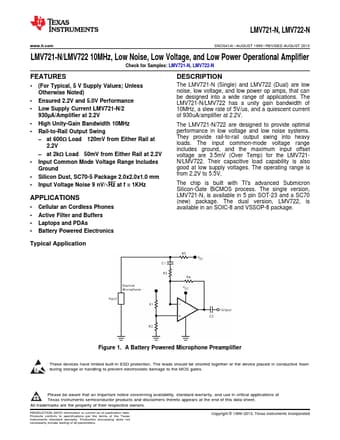

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LMV722-N, LMV721-N
Manufacturer
Texas Instruments ↗
File Size
1.24 MB
Datasheet
LMV721-N-etcTI.pdf
Description
LOW-POWER OPERATIONAL AMPLIFIERS
Note
This datasheet PDF includes multiple part numbers: LMV722-N, LMV721-N.
Please refer to the document for exact specifications by model.
