LP5018, I2C RGB LED Drivers

LP5018, LP5024 SLVSEB8C * OCTOBER 2018 * REVISED JULY 2024 LP50xx 18-, 24-Channel, 12-Bit, PWM Ultralow-Quiescent-Current, I2C RGB LED.
In smart homes and other applications that use human-machine-interaction, high-performance RGB LED drivers are required.

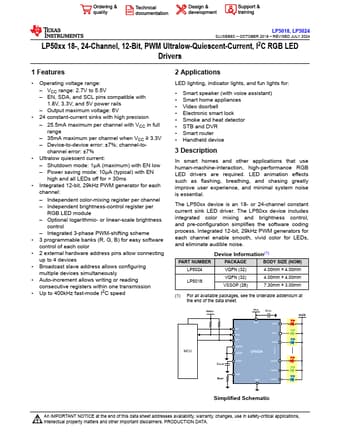

datasheet Preview Page 1 from Datasheet4u.com

LP5018-etcTI.pdf

LP5018 Datasheet Preview — Preview of LP5018 PDF

Datasheet Details

Part number:

LP5018

Manufacturer:

Texas Instruments ↗

File Size:

2.47 MB

Description:

I2C RGB LED Drivers

Features

* Operating voltage range:
* VCC range: 2.7V to 5.5V
* EN, SDA, and SCL pins compatible with 1.8V, 3.3V, and 5V power rails
* Output maximum voltage: 6V
* 24 constant-current sinks with high precision
* 25.5mA maximum per channel with VCC in full range

Applications

* LED lighting, indicator lights, and fun lights for:
* Smart speaker (with voice assistant)
* Smart home appliances
* Video doorbell
* Electronic smart lock
* Smoke and heat detector
* STB and DVR
* Smart router
* Handheld device 3 Desc
