LP5017, LP5017-Link - 10Base-T Isolation Transformers

LP5017 Description

10Base-T Isolation Transformers For Adaptor Cards,Maus,Hubs,and Motherboard applications Designed to meet or exceed IEEE802.3.10Base-T specific.

LP5017 Applications

* Designed to meet or exceed IEEE802.3. 10Base-T specifications Available With Common Mode Chokes for EMI Suppression SMT,THT,DIP etc Package For RoHS part add suffix NL          RoHS NL peak solder rating 235 Link-PP Int’l Technology Electrical Specifications @25

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LP5017, LP5017-Link. Please refer to the document for exact specifications by model.

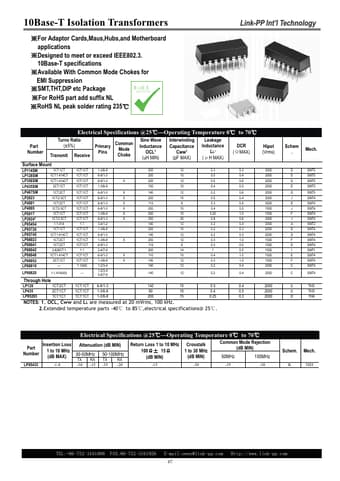

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LP5017, LP5017-Link
Manufacturer
Link-PP
File Size
382.68 KB
Datasheet
LP5017-Link-PP.pdf
Description
10Base-T Isolation Transformers
Note
This datasheet PDF includes multiple part numbers: LP5017, LP5017-Link.
Please refer to the document for exact specifications by model.
