LP5300 - Over Voltage and Over Current Protection

Datasheet Summary

Description

The LP5300 is an Over-Voltage-Protection (OVP) and Over-Current-Protection (OCP) device.

The device will switch off internal MOSFET to disconnect VIN to VOUT to protect load when any of input voltage, input current over the threshold.

Features

Input Voltage Range: 3V to 36V.
Typical Output Power on Time: 9ms.
OVP Threshold: 6.1V.
OVP Threshold Time Less Than 1μs.
Over Current Protection: 2.1A(MIN).
Low RDS(ON) Internal Switches:130mΩ @ 5V /1A.
Output Discharge.
Thermal Fault Protection.
SOT23-6/SOT89 Package.
RoHS Compliant and 100% Lead (Pb)-Free Order Information LP5300.
F: Pb-Free Package Type B6:SOT23-6 X3:SOT89 Typical.

Datasheet Details

Part number	LP5300
Manufacturer	Lowpowersemi
File Size	566.53 KB
Description	Over Voltage and Over Current Protection
Datasheet	LP5300 Datasheet
Additional preview pages of the LP5300 datasheet.

📁 Similar Datasheet

LP5004 - 1000Base-T Magnetics (Link-PP)

LP5007 - 1000Base-T Magnetics (Link-PP)

LP5008 - 1000Base-T Magnetics (Link-PP)

LP5009 - 12-Bit PWM Ultra-low Quiescent Current I2C RGB LED Drivers (Texas Instruments)

LP5012 - 1000Base-T Magnetics (Link-PP)

LP5012 - 12-Bit PWM Ultra-low Quiescent Current I2C RGB LED Drivers (Texas Instruments)

LP5014 - 1000Base-T Magnetics (Link-PP)

LP5017 - 10Base-T Isolation Transformers (Link-PP)

LP5018 - I2C RGB LED Drivers (Texas Instruments)

LP502 - Low Distortion AGC Compression Amplifier (Gennum Corporation)

Full PDF Text Transcription

Click to expand full text

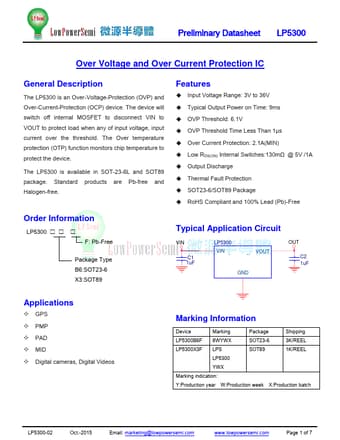

Preliminary Datasheet LP5300 Over Voltage and Over Current Protection IC General Description The LP5300 is an Over-Voltage-Protection (OVP) and Over-Current-Protection (OCP) device. The device will switch off internal MOSFET to disconnect VIN to VOUT to protect load when any of input voltage, input current over the threshold. The Over temperature protection (OTP) function monitors chip temperature to protect the device. The LP5300 is available in SOT-23-6L and SOT89 package. Standard products are Pb-free and Halogen-free. Features  Input Voltage Range: 3V to 36V  Typical Output Power on Time: 9ms  OVP Threshold: 6.1V  OVP Threshold Time Less Than 1μs  Over Current Protection: 2.
