LP5306 Datasheet PDF - Lowpowersemi Over Voltage and Over Current Protection Specs

LP5306 - Over Voltage and Over Current Protection

Datasheet Summary

Description

The LP5306 is a highly integrated circuits, it used to protect low voltage system from abnormal high input voltage.

The IC continuously check the input voltage, the input current, and the battery voltage.

When the protection status is occur, the power MOS will turn off at the same time.

Features

include over temperature protection and under-voltage lockout (UVLO). The LP5306 is available in a space saving DFN-8 package. Order Information LP5306.
F: Green Package Type QV: DFN-8 Features.
Withstand High Input Voltage Up to 26V.
Adjustable Over Current Protection.
Input Over Voltage Protection.
Battery Over Voltage Protection.
High Accuracy Protection Thresholds.
Fault Signal Output.
Enable Control.
Under Voltage Lockout.

Datasheet Details

Part number	LP5306
Manufacturer	Lowpowersemi
File Size	438.99 KB
Description	Over Voltage and Over Current Protection
Datasheet	LP5306 Datasheet
Additional preview pages of the LP5306 datasheet.

📁 Similar Datasheet

LP5004 - 1000Base-T Magnetics (Link-PP)

LP5007 - 1000Base-T Magnetics (Link-PP)

LP5008 - 1000Base-T Magnetics (Link-PP)

LP5009 - 12-Bit PWM Ultra-low Quiescent Current I2C RGB LED Drivers (Texas Instruments)

LP5012 - 1000Base-T Magnetics (Link-PP)

LP5012 - 12-Bit PWM Ultra-low Quiescent Current I2C RGB LED Drivers (Texas Instruments)

LP5014 - 1000Base-T Magnetics (Link-PP)

LP5017 - 10Base-T Isolation Transformers (Link-PP)

LP5018 - I2C RGB LED Drivers (Texas Instruments)

LP502 - Low Distortion AGC Compression Amplifier (Gennum Corporation)

Full PDF Text Transcription

Click to expand full text

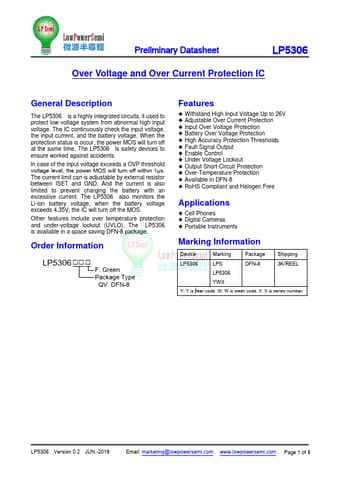

Preliminary Datasheet LP5306 Over Voltage and Over Current Protection IC General Description The LP5306 is a highly integrated circuits, it used to protect low voltage system from abnormal high input voltage. The IC continuously check the input voltage, the input current, and the battery voltage. When the protection status is occur, the power MOS will turn off at the same time. The LP5306 is safety devices to ensure worked against accidents. In case of the input voltage exceeds a OVP threshold voltage level, the power MOS will turn off within 1μs. The current limit can is adjustable by external resistor between ISET and GND. And the current is also limited to prevent charging the battery with an excessive current.

Published: Sep 16, 2019 |
