LP5301

Over Voltage and Over Current Protection

LP5301 Features

* Input Voltage Range: 3.5V to 36V

* Typical Output Power on Time: 9ms

* OVP Threshold: 6.1V

* OVP Threshold Time Less Than 1μs

* Programmable Current Limit up to 2.1A

* Low RDS(ON) Internal Switches:130mΩ @ 5V /1A

* Output Discharge

* Thermal Fault Protection

* S

LP5301 General Description

The LP5301 is an Over-Voltage-Protection(OVP) and programmable Over-Current-Protection (OCP) device. The device will switch off internal MOSFET to disconnect VIN to VOUT to protect load when any of input voltage, input current over the threshold. The Over temperature protection (OTP) function monito.

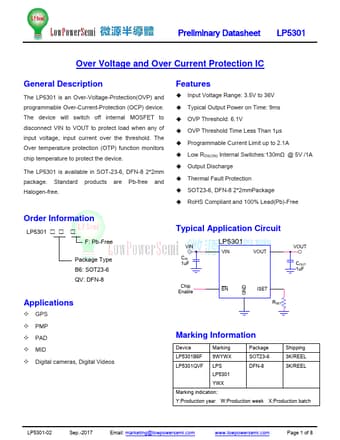

LP5301 Datasheet (752.43 KB)
