LP5024

I2C RGB LED Drivers

LP5024 Features

* Operating voltage range:

* VCC range: 2.7V to 5.5V

* EN, SDA, and SCL pins compatible with 1.8V, 3.3V, and 5V power rails

* Output maximum voltage: 6V

* 24 constant-current sinks with high precision

* 25.5mA maximum per channel with VCC in full range

LP5024 General Description

In smart homes and other applications that use human-machine-interaction, high-performance RGB LED drivers are required. LED animation effects such as flashing, breathing, and chasing greatly improve user experience, and minimal system noise is essential. The LP50xx device is an 18- or 24-channel .

LP5024 Datasheet (2.47 MB)

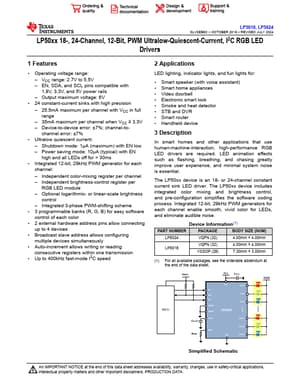

Preview of LP5024 PDF

Datasheet Details

Part number:

LP5024

Manufacturer:

Texas Instruments ↗

File Size:

2.47 MB

Description:

I2c rgb led drivers.
LP5018, LP5024 SLVSEB8C

* OCTOBER 2018

* REVISED JULY 2024 LP50xx 18-, 24-Channel, 12-Bit, PWM Ultralow-Quiescent-Current, I2C RGB LED.
