OPA320S, OPA320 CMOS Operational Amplifier

OPA320S Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design OPA320, OPA2320, OPA320S, OPA2320S SBOS513.
The OPA320 (single) and OPA2320 (dual) are a new generation of precision, low-voltage CMOS operational amplifiers optimized for very low noise and wid.

OPA320S Features

* 1 Precision with Zero-Crossover Distortion:
* Low Offset Voltage: 150 µV (Maximum)
* High CMRR: 114 dB
* Rail-to-Rail I/O
* Low Input Bias Current: 0.9 pA (Maximum)
* Low Noise: 7 nV/√Hz at 10 kHz
* Wide Bandwidth: 20 MHz
* Slew Rate:

OPA320S Applications

* High-Z Sensor Signal Conditioning
* Transimpedance Amplifiers
* Test and Measurement Equipment
* Programmable Logic Controllers (PLCs)
* Motor Control Loops
* Communications
* Input/Output ADC/DAC Buffers
* Active Filters Block Diagra

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA320S, OPA320. Please refer to the document for exact specifications by model.

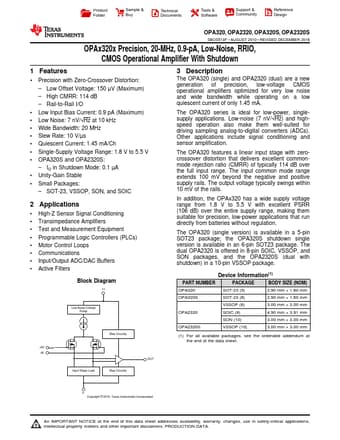

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA320S, OPA320
Manufacturer
Texas Instruments ↗
File Size
2.65 MB
Datasheet
OPA320-etcTI.pdf
Description
CMOS Operational Amplifier
Note
This datasheet PDF includes multiple part numbers: OPA320S, OPA320.
Please refer to the document for exact specifications by model.
