OPA322S, OPA322 Datasheet - Texas Instruments

OPA322S CMOS Operational Amplifier

The OPAx322x series consists of single, dual, and quad-channel CMOS operational amplifiers featuring low noise and rail-to-rail inputs and outputs optimized for low-power, single-supply applications. Specified over a wide supply range of 1.8 V to 5.5 V, the low quiescent current of only 1.5 mA per c.

OPA322S Features

* 1 Gain Bandwidth: 20 MHz

* Low Noise: 8.5 nV√Hz at 1 kHz

* Slew Rate: 10 V/μs

* Low THD+N: 0.0005%

* Rail-to-Rail I/O

* Offset Voltage: 2 mV (maximum)

* Supply Voltage: 1.8 V to 5.5 V

* Supply Current: 1.5 mA/ch

* Shutdown: 0.1

OPA322-etcTI.pdf

This datasheet PDF includes multiple part numbers: OPA322S, OPA322. Please refer to the document for exact specifications by model.

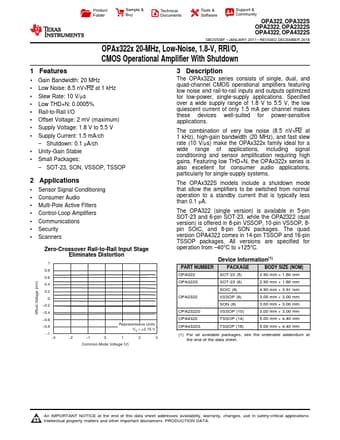

OPA322S Datasheet Preview Page 2 OPA322S Datasheet Preview Page 3

Datasheet Details

Part number:

OPA322S, OPA322

Manufacturer:

Texas Instruments ↗

File Size:

2.76 MB

Description:

Cmos operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: OPA322S, OPA322.
Please refer to the document for exact specifications by model.
