OPA832

Video Buffer Amplifier

OPA832 Features

* D HIGH BANDWIDTH: 80MHz (G = +2) D LOW SUPPLY CURRENT: 3.9mA D FLEXIBLE SUPPLY RANGE: +2.8V to +11V Single Supply ±1.4V to ±5.5V Dual Supply D INPUT RANGE INCLUDES GROUND ON SINGLE SUPPLY D 4.9VPP OUTPUT SWING ON +5V SUPPLY D HIGH SLEW RATE: 350V/µsec D LOW INPUT VOLTAGE NOISE: 9.3nV/√Hz D Pb-FREE S

OPA832 General Description

The OPA832 is a low-power, high-speed, fixed-gain amplifier designed to operate on a single +3.3V or +5V supply. Operation on ±5V or +10V supplies is also supported. The input range extends below ground and to within 1V of the positive supply. Using complementary common-emitter outputs provides an o.

OPA832 Datasheet (628.74 KB)

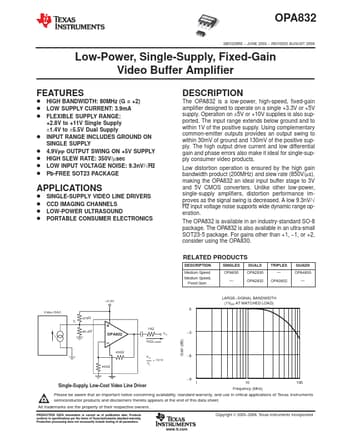

Preview of OPA832 PDF

Datasheet Details

Part number:

OPA832

Manufacturer:

Texas Instruments ↗

File Size:

628.74 KB

Description:

Video buffer amplifier.
