OPA838 Datasheet, Amp, Texas Instruments

OPA838 Features

  • Amp
  • 1 Gain Bandwidth Product: 300 MHz
  • Very-Low (Trimmed) Supply Current: 950 µA
  • Bandwidth: 90 MHz (AV = 6 V/V)
  • High Full-Power Bandwidth: 45 MHz, 4 VP

PDF File Details

Part number:

OPA838

Manufacturer:

Texas Instruments ↗

File Size:

2.73MB

Download:

📄 Datasheet

Description:

Voltage-feedback op amp. The OPA838 decompensated voltage feedback operational amplifier provides a high 300-MHz gain bandwidth product with 1.8-nV/√Hz input

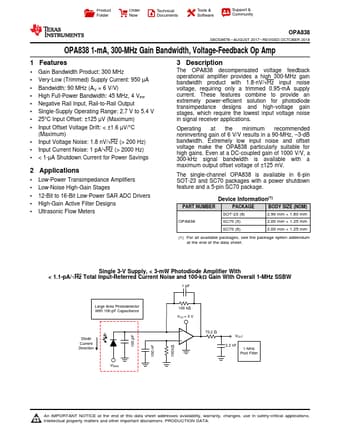

Datasheet Preview: OPA838 📥 Download PDF (2.73MB)
Page 2 of OPA838 Page 3 of OPA838

OPA838 Application

  • Applications
  • Low-Power Transimpedance Amplifiers
  • Low-Noise High-Gain Stages
  • 12-Bit to 16-Bit Low-Power SAR ADC Drivers
