OPA835

VFB Op Amp

OPA835 Features

* 1 Ultra-Low Power

* Supply Voltage: 2.5 V to 5.5 V

* Quiescent Current: 250 µA/ch (Typical)

* Power Down Mode: 0.5 µA (Typical)

* Bandwidth: 56 MHz (AV = 1 V/V)

* Slew Rate: 160 V/µs

* Rise Time: 10 ns (2 VSTEP)

* Settling Time (0.1%):

OPA835 General Description

The OPA835 and OPA2835 devices (OPAx835) are single and dual ultra-low-power, rail-to-rail output, negative-rail input, voltage-feedback (VFB) operational amplifiers designed to operate over a power supply range of 2.5-V to 5.5-V with a single supply, or ±1.25-V to ±2.75-V with a dual supply. Consum.

OPA835 Datasheet (2.53 MB)

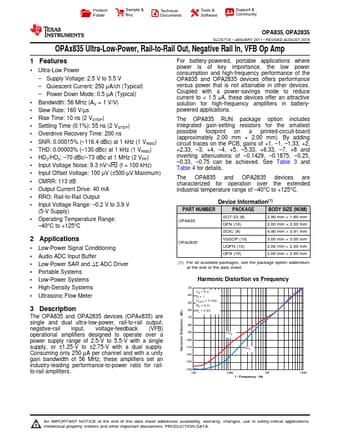

Preview of OPA835 PDF

Datasheet Details

Part number:

OPA835

Manufacturer:

Texas Instruments ↗

File Size:

2.53 MB

Description:

Vfb op amp.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community OPA835, OPA2835 SLOS713I

* JANUARY 2011

* RE.
