OPA837

Voltage-Feedback Op Amp

OPA837 Features

* 1 Bandwidth: 105 MHz (AV = 1 V/V)

* Very Low (Trimmed) Supply Current: 600 µA

* Gain Bandwidth Product: 50 MHz

* Slew Rate: 105 V/µs

* Negative Rail Input, Rail-to-Rail Output

* Single-Supply Operating Range: 2.7 V to 5.4 V

* 25°C Input Offset

OPA837 General Description

The OPA837 and OPA2837 are single- and dualchannel unity-gain stable, voltage-feedback amplifiers that provide among the highest MHz per mW of bandwidth versus power among precision op amps. Using only 600 µA per channel on a single 5-V supply, these 3.0-mW devices deliver 105-MHz bandwidth at a gai.

OPA837 Datasheet (2.75 MB)

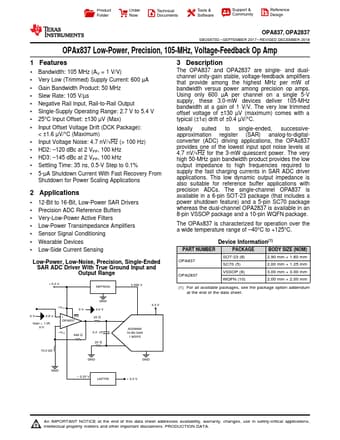

Preview of OPA837 PDF

Datasheet Details

Part number:

OPA837

Manufacturer:

Texas Instruments ↗

File Size:

2.75 MB

Description:

Voltage-feedback op amp.
Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design OPA837, OPA2837 SBOS673D

* SEPTEMBER .
