PTH03010W, 3.3-V Input Non-Isolated Wide-Output Adjust Power Module

PTH03010W *3.3-V Input 15-A, 3.3-V Input Non-Isolated Wide-Output Adjust Power Module SLTS203C * MAY 2003 * REVISED DECEMBER .
The PTH03010 series of non-isolated power modules are small in size but big on performance and flexibility.

datasheet Preview Page 1 from Datasheet4u.com

PTH03010W-etcTI.pdf

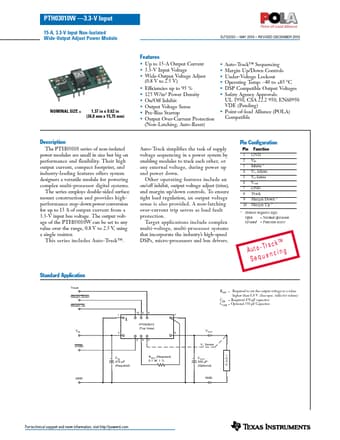

PTH03010W Datasheet Preview — Preview of PTH03010W PDF

Datasheet Details

Part number:

PTH03010W

Manufacturer:

Texas Instruments ↗

File Size:

508.78 KB

Description:

3.3-V Input Non-Isolated Wide-Output Adjust Power Module

Features

* Up to 15-A Output Current
* 3.3-V Input Voltage
* Wide-Output Voltage Adjust (0.8 V to 2.5 V)
* Efficiencies up to 95 %
* 125 W/in³ Power Density
* On/Off Inhibit
* Output Voltage Sense
* Pre-Bias Startup
* Output Over-Current

Applications

* include complex multi-voltage, multi-processor systems that incorporate the industry’s high-speed DSPs, micro-processors and bus drivers. Pin Configuration Pin Function 1 GND 2 Vin 3 Inhibit
* 4 Vo Adjust 5 Vo Sense 6 Vout 7 GND 8 Track 9 Margin Down
* 10 Margin Up
* Denotes negat
