PTH03050W - 3.3-V Input Non-Isolated Wide-Output Adjust Power Module

Texas Instruments

📥 Download Datasheet

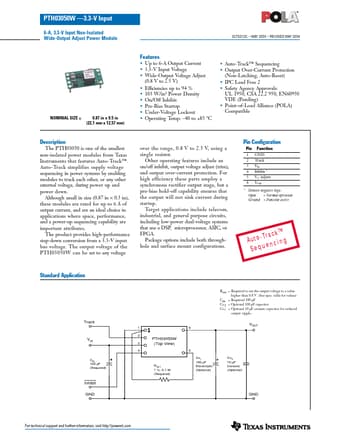

PTH03050W Datasheet Preview — Preview of PTH03050W PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PTH03050W
Manufacturer	Texas Instruments ↗
File Size	687.87 KB
Description	3.3-V Input Non-Isolated Wide-Output Adjust Power Module
Datasheet	PTH03050W-etcTI.pdf

PTH03050W Product details

Description

The PTH03050 is one of the smallest non-isolated power modules from Texas Instruments that

Features

Up to 6-A Output Current.
3.3-V Input Voltage.
Wide-Output Voltage Adjust (0.8 V to 2.5 V).
Efficiencies up to 94 %.
103 W/in³ Power Density.
On/Off Inhibit.
Pre-Bias Startup.
Under-Voltage Lockout.
Operating Temp:.
40 to +85 °C.
Auto-Track™ Sequencing.
Output Over-Current Protection (Non-Latching, Auto-Reset).
IPC Lead Free 2.
Safety Agency Approvals: UL 1950, CSA 22.2.
