PTH03050Y 6-A NON-ISOLATED DDR/QDR MEMORY BUS TERMINATION MODULES

The PTHxx050Y are a series of ready-to-use switching regulator modules from Texas Instruments designed specifically for bus termination in DDR and QDR memory applications. Operating from either a 3.3-V, 5-V or 12-V input, the modules generate a VTT output that will source or sink up to 6 A of curren.

PTH03050Y Features

* VTT Bus Termination Output (Output Tracks the System VREF)

* 6 A Output Current (8 A Peak)

* 3.3-V, 5-V or 12-V Input Voltage

* DDR and QDR Compatible

* On/Off Inhibit (for VTT Standby)

* Undervoltage Lockout

* Operating Temperature:

PTH12050Y-etcTI.pdf

This datasheet PDF includes multiple part numbers: PTH03050Y, PTH12050Y. Please refer to the document for exact specifications by model.

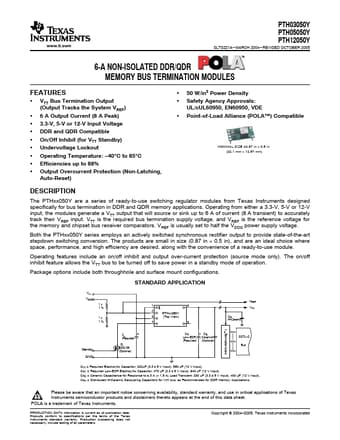

PTH03050Y Datasheet Preview Page 2 PTH03050Y Datasheet Preview Page 3
