SN54HC240

OCTAL BUFFERS AND LINE DRIVERS

SN54HC240 Features

* Wide Operating Voltage Range of 2 V to 6 V

* High-Current Outputs Drive Up To 15 LSTTL Loads

* Low Power Consumption, 80-µA Max ICC

* Typical tpd = 9 ns

* ±6-mA Output Drive at 5 V

* Low Input Current of 1 µA Max

* 3-State Outputs Drive Bus L

SN54HC240 General Description

These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The ’HC240 devices are organized as two 4-bit buffers/drivers with separate output-enable (OE) in.

SN54HC240 Datasheet (1.97 MB)

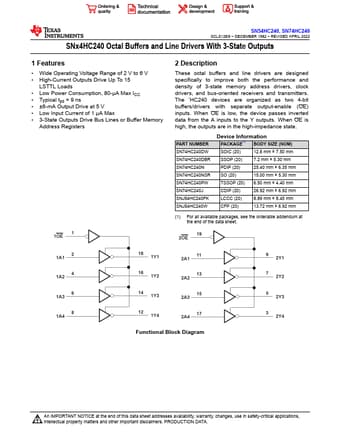

Preview of SN54HC240 PDF

Datasheet Details

Part number:

SN54HC240

Manufacturer:

Texas Instruments ↗

File Size:

1.97 MB

Description:

Octal buffers and line drivers.
SN54HC240, SN74HC240 SCLS128G

* DECEMBER 1982

* REVISED APRIL 2022 SNx4HC240 Octal Buffers and Line Drivers With 3-State Outputs 1 Fe.
