SN54HC245

Octal Bus Transceivers

SN54HC245 Features

* Wide Operating Voltage Range of 2 V to 6 V

* High-Current 3-State Outputs Drive Bus Lines Directly or Up to 15 LSTTL Loads

* Low Power Consumption, 80-μA Max ICC

* Typical tpd = 12 ns

* ±6-mA Output Drive at 5 V

* Low Input Current of 1 μA Max

SN54HC245 General Description

These octal bus transceivers are designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic le.

SN54HC245 Datasheet (2.83 MB)

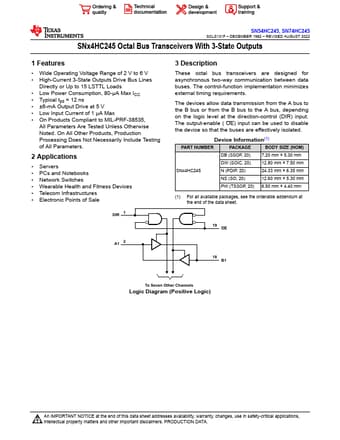

Preview of SN54HC245 PDF

Datasheet Details

Part number:

SN54HC245

Manufacturer:

Texas Instruments ↗

File Size:

2.83 MB

Description:

Octal bus transceivers.
