SN54HC244

Octal Buffers and Line Drivers

SN54HC244 Features

* Wide Operating Voltage Range of 2 V to 6 V

* High-Current Outputs Drive Up to 15 LSTTL Loads

* 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers

* Low Power Consumption: ICC, 80-µA (Maximum)

* Typical tpd = 11 ns

* ±6-mA Output Drive

SN54HC244 General Description

The SNx4HC244 octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The SNx4HC244 devices are organized as two 4bit buffers and drivers with separate output-.

SN54HC244 Datasheet (2.06 MB)

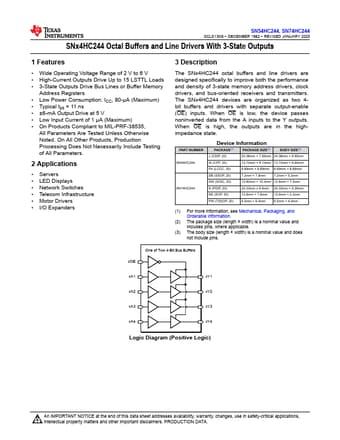

Preview of SN54HC244 PDF

Datasheet Details

Part number:

SN54HC244

Manufacturer:

Texas Instruments ↗

File Size:

2.06 MB

Description:

Octal buffers and line drivers.
SN54HC244, SN74HC244 SCLS130G

* DECEMBER 1982

* REVISED JANUARY 2025 SNx4HC244 Octal Buffers and Line Drivers With 3-State Outputs 1 .
