SN54HC241

OCTAL BUFFERS AND LINE DRIVERS

SN54HC241 Features

* Wide operating voltage range of 2 V to 6 V

* High-current outputs drive up to 15 LSTTL loads

* Low power consumption, 80-μA max ICC

* Typical tpd =11 ns

* ±6-mA output drive at 5 V

* Low input current of 1 μA max

* 3-state outputs drive bus l

SN54HC241 General Description

These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The ’HC241 devices are organized as two 4-bit buffers/drivers with separate output-enable (1OE an.

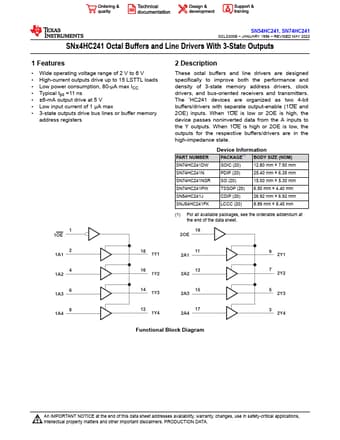

SN54HC241 Datasheet (1.88 MB)

Preview of SN54HC241 PDF

Datasheet Details

Part number:

SN54HC241

Manufacturer:

Texas Instruments ↗

File Size:

1.88 MB

Description:

Octal buffers and line drivers.
SN54HC241, SN74HC241 SCLS300E

* JANUARY 1996

* REVISED MAY 2022 SNx4HC241 Octal Buffers and Line Drivers With 3-State Outputs 1 Featu.
