SN65HVS881 Datasheet - Texas Instruments

INDUSTRIAL 8-DIGITAL-INPUT SERIALIZER

SN65HVS881 Features

* 1

* 2 Eight Inputs

* High Input Voltage

* up to 34 V

* Selectable Debounce Filters

* 0 ms to 3 ms

* Flexible Input Current Limit: 0.2 to 5.2 mA

* Field Pins Protected to 15-kV HBM ESD

* Diagnostics:

* Parity Check

* Under

SN65HVS881 General Description

The SN65HVS881 is an eight channel, digital-input serializer for high-channel density digital input modules in industrial automation. In combination with galvanic isolators the device completes the interface between the high voltage signals on the field-side and the low-voltage signals on the contro.

SN65HVS881 Datasheet (919.22 KB)

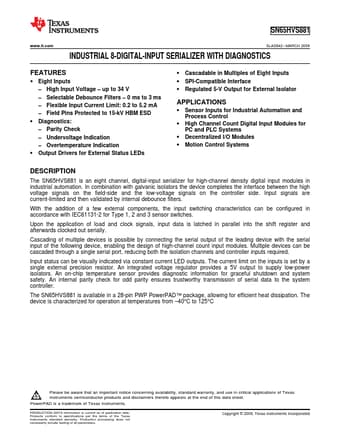

Preview of SN65HVS881 PDF

Datasheet Details

Part number:

SN65HVS881

Manufacturer:

Texas Instruments ↗

File Size:

919.22 KB

Description:

Industrial 8-digital-input serializer.
