SN65HVS883 Datasheet - Texas Instruments

Eight-Channel Digital-Input Serializer

SN65HVS883 Features

* 1 Eight Sensor Inputs

* High Input Voltage up to 34 V

* Selectable Debounce Filters From 0 ms to 3 ms

* Adjustable Current Limits From 0.2 mA to 5.2 mA

* Field Inputs and Supply Lines Protected to 15-kV HBM

* Output Drivers for External Status LEDs

SN65HVS883 General Description

The SN65HVS883 is a 24-V, eight-channel, digitalinput serializer for high-channel density digital input modules of PC and PLC-based systems in industrial automation. In combination with galvanic isolators, the device completes the interface between the 24-V sensor outputs of the field-side and the l.

SN65HVS883 Datasheet (960.91 KB)

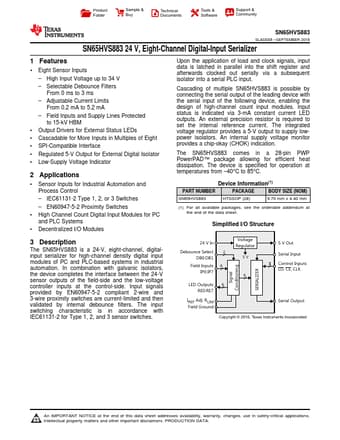

SN65HVS883 Datasheet Preview — Preview of SN65HVS883 PDF

Datasheet Details

Part number:

SN65HVS883

Manufacturer:

Texas Instruments ↗

File Size:

960.91 KB

Description:

Eight-channel digital-input serializer.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN65HVS883 SLASEE6 SEPTEMBER 2016 SN65HVS883 24 V,.
