SN65HVS885 Datasheet - Texas Instruments

34-V Digital-Input Serializer

SN65HVS885 Features

* 1 Eight Digital Sensor Inputs

* High Input Voltage up to 34 V

* Selectable Debounce Filters From 0 ms to 3 ms

* Flexible Input Current-Limited

* 0.2 mA to 5.2 mA

* Field Inputs Protected to 15-kV ESD

* Single 5-V Supply

* Output Driver

SN65HVS885 General Description

The SN65HVS885 is an eight channel, digital-input serializer for high-channel density digital input modules in industrial and building automation. Operating from a 5-V supply the device accepts field input voltages of up to 34 V. In combination with galvanic isolators the device completes the interf.

SN65HVS885 Datasheet (940.25 KB)

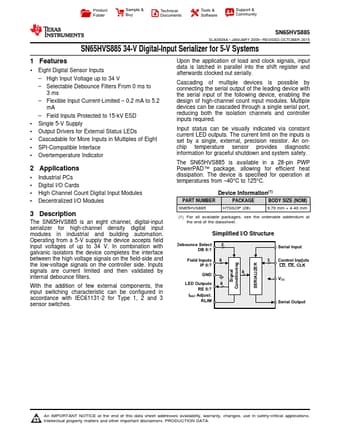

SN65HVS885 Datasheet Preview — Preview of SN65HVS885 PDF

Datasheet Details

Part number:

SN65HVS885

Manufacturer:

Texas Instruments ↗

File Size:

940.25 KB

Description:

34-v digital-input serializer.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN65HVS885 SLAS638A JANUARY 2009 REVISED.
