SN65HVS882 Datasheet - Texas Instruments

SN65HVS882 INDUSTRIAL 8-DIGITAL-INPUT SERIALIZER

The SN65HVS882 is an eight channel, digital-input serializer for high-channel density digital input modules in industrial automation. In combination with galvanic isolators the device completes the interface between the high voltage signals on the field-side and the low-voltage signals on the contro.

SN65HVS882 Features

* 1

* 2 Eight Inputs

* High Input Voltage

* up to 34 V

* Selectable Debounce Filters

* 0 ms to 3 ms

* Flexible Input Current Limit

* 0.2 mA to 5.2 mA

* Field Pins Protected to 15-kV HBM ESD

* Output Drivers for External Status LEDs

SN65HVS882-etcTI.pdf

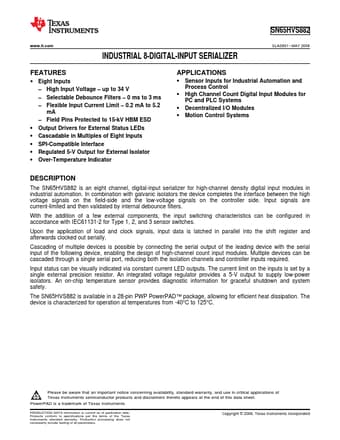

Preview of SN65HVS882 PDF
SN65HVS882 Datasheet Preview Page 2 SN65HVS882 Datasheet Preview Page 3

Datasheet Details

Part number:

SN65HVS882

Manufacturer:

Texas Instruments ↗

File Size:

823.57 KB

Description:

Industrial 8-digital-input serializer.
