SN74AC533 Datasheet - Texas Instruments

OCTAL TRANSPARENT D-TYPE LATCHES

SN74AC533 General Description

ordering information The ’AC533 devices are octal transparent D-type latches with 3-state outputs. When the latch-enable (LE) input is high, the Q outputs follow the complements of the data (D) inputs. When LE is taken low, the Q outputs are latched at the inverse logic levels set up at the D inputs.

SN74AC533 Datasheet (567.99 KB)

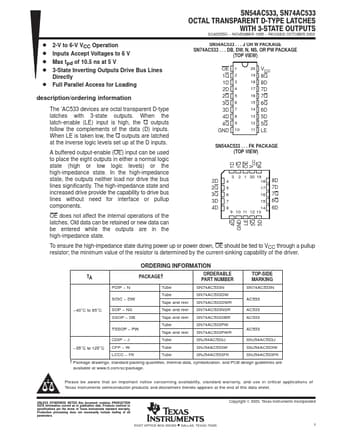

SN74AC533 Datasheet Preview — Preview of SN74AC533 PDF

Datasheet Details

Part number:

SN74AC533

Manufacturer:

Texas Instruments ↗

File Size:

567.99 KB

Description:

Octal transparent d-type latches.
SN54AC533, SN74AC533 OCTAL TRANSPARENT DĆTYPE LATCHES WITH 3ĆSTATE OUTPUTS SCAS555C NOVEMBER 1995 REVISED OCTOBER 2003 D 2-V to 6.
