SN74AC573 Octal D-type Transparent Latches

SN74AC573 Description

SN74AC573 SCAS542H * OCTOBER 1995 * REVISED FEBRUARY 2024 SN74AC573 Octal D-type Transparent Latches with 3-State Outputs 1 .
These 8-bit latches feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads.

SN74AC573 Features

* Operation of 2V to 6V V CC
* Inputs accept voltages to 6V
* Maximum tpd of 9ns at 5V

SN74AC573 Applications

* Buffer registers
* Bidirectional bus drivers

📥 Download Datasheet

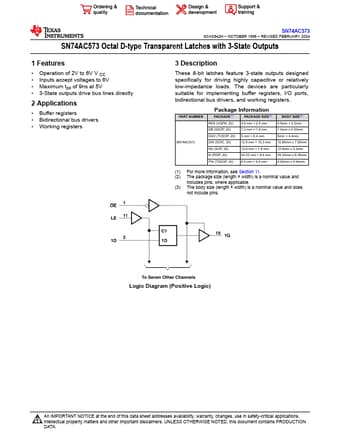

Preview of SN74AC573 PDF
datasheet Preview Page 2 datasheet Preview Page 3
