SN74AC563 Datasheet - Texas Instruments

OCTAL D-TYPE TRANSPARENT LATCHES

SN74AC563 General Description

ordering information The ’AC563 devices are octal D-type transparent latches with 3-state outputs. When the latch-enable (LE) input is high, the Q outputs follow the complements of the data (D) inputs. When LE is taken low, the Q outputs are latched at the inverse logic levels set up at the D inputs.

SN74AC563 Datasheet (1.29 MB)

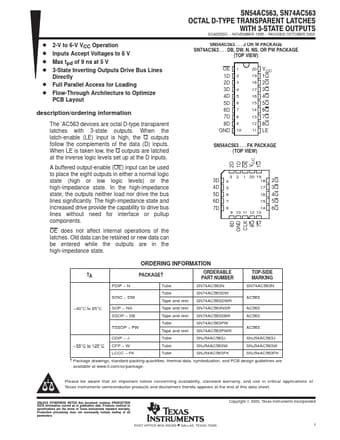

SN74AC563 Datasheet Preview — Preview of SN74AC563 PDF

Datasheet Details

Part number:

SN74AC563

Manufacturer:

Texas Instruments ↗

File Size:

1.29 MB

Description:

Octal d-type transparent latches.
D 2-V to 6-V VCC Operation D Inputs Accept Voltages to 6 V D Max tpd of 9 ns at 5 V D 3-State Inverting Outputs Drive Bus Lines Directly D Full Parall.
