SN74AC564 - Octal D-Type Edge-Triggered Flip-Flops

Name: SN74AC564
SKU: SN74AC564-1544014

Texas Instruments

📥 Download Datasheet

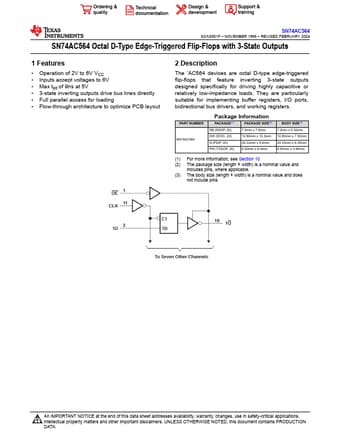

SN74AC564 Datasheet Preview — Preview of SN74AC564 PDF

Datasheet Details

Part number	SN74AC564
Manufacturer	Texas Instruments
File Size	1.36 MB
Description	Octal D-Type Edge-Triggered Flip-Flops
Datasheet	SN74AC564-etcTI.pdf

SN74AC564 Product details

Description

The ’AC564 devices are octal D-type edge-triggered flip-flops that feature inverting 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads.

Features

Operation of 2V to 6V VCC.
Inputs accept voltages to 6V.
Max tpd of 9ns at 5V.
3-state inverting outputs drive bus lines directly.
Full parallel access for loading.
Flow-through architecture to optimize PCB layout 2.
