SN761633 - FM STEREO RADIO

SN761633 Description

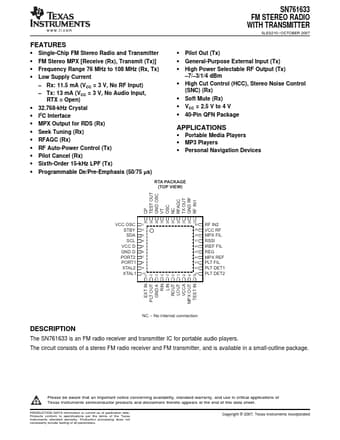

www.ti.com SN761633 FM STEREO RADIO WITH TRANSMITTER SLES210 * OCTOBER 2007 .
The SN761633 is an FM radio receiver and transmitter IC for portable audio players.

SN761633 Features

* 1
* Single-Chip FM Stereo Radio and Transmitter
* FM Stereo MPX [Receive (Rx), Transmit (Tx)]
* Frequency Range 76 MHz to 108 MHz (Rx, Tx)
* Low Supply Current
* Rx: 11.5 mA (VCC = 3 V, No RF Input)
* Tx: 13 mA (VCC = 3 V, No Audio Input, RTX = Open)

SN761633 Applications

* Portable Media Players
* MP3 Players
* Personal Navigation Devices RTA PACKAGE (TOP VIEW) CP TEST OUT GND OSC VT OSC NC RFAGC TX OUT GND RF RF IN1 VCC OSC STBY SDA SCL VCC D GND D PORT2 PORT1 XTAL2 XTAL1 40 39 38 37 36 35 34 33 32 31 1 30 2 29 3 28 4 27 5 26 6 25 7 24 8
