SN761634 - FM STEREO TRANSMITTER

Texas Instruments

📥 Download Datasheet

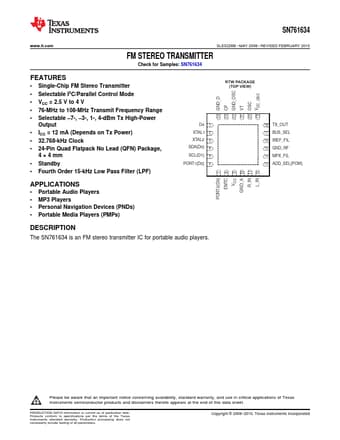

SN761634 Datasheet Preview — Preview of SN761634 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SN761634
Manufacturer: Texas Instruments ↗
File Size: 260.19 KB
Datasheet: SN761634-etcTI.pdf
Description: FM STEREO TRANSMITTER

SN761634 Product details

Description

The SN761634 is an FM stereo transmitter IC for portable audio players..

Features

1.
Single-Chip FM Stereo Transmitter.
Selectable I2C/Parallel Control Mode.
VCC = 2.5 V to 4 V.
76-MHz to 108-MHz Transmit Frequency Range.
Selectable.
7-,.
3-, 1-, 4-dBm Tx High-Power Output.
ICC = 12 mA (Depends on Tx Power).
32.768-kHz Clock.
24-Pin Quad Flatpack No Lead (QFN) Package, 4 × 4 mm.
Standby.
Fourth Order 15-kHz Low Pass Filter (LPF) RTW.
