TL103W - Dual Operational Amplifier

Product Overview

Texas Instruments

Datasheet Details

Part number	TL103W
Manufacturer	Texas Instruments
File Size	782.85 KB
Description	Dual Operational Amplifier
Datasheet	TL103W Datasheet

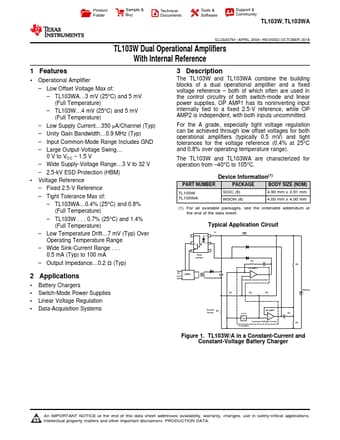

Additional preview pages of the TL103W datasheet.

Product details

Description

The TL103W and TL103WA combine the building blocks of a dual operational amplifier and a fixed voltage reference both of which often are used in the control circuitry of both switch-mode and linear power supplies.

Features

1 Operational Amplifier.
Low Offset Voltage Max of:.
TL103WA…3 mV (25°C) and 5 mV (Full Temperature).
TL103W…4 mV (25°C) and 5 mV (Full Temperature).
Low Supply Current…350 μA/Channel (Typ).
Unity Gain Bandwidth…0.9 MHz (Typ).
Input Common-Mode Range Includes GND.
Large Output-Voltage Swing… 0 V to VCC.
1.5 V.
Wide Supply-Voltage Range…3 V to 32 V.
2.5-kV ESD Protection (HBM).
Voltage Refe.
