TL1431-SP

Precision Programmable Reference

TL1431-SP Features

* QMLV qualified to 100-krad(Si) RHA, 5962R99620

* 0.4% initial voltage tolerance

* 0.2-Ω typical output impedance

* Fast turnon: 500 ns

* Sink current capability: 1 mA to 100 mA

* Low reference current (REF)

* Adjustable output voltage: VI(ref

TL1431-SP General Description

The TL1431 is a precision programmable reference with specified thermal stability over automotive, commercial, and military temperature ranges. The output voltage can be set to any value between VI(ref) (approximately 2.5 V) and 36 V with two external resistors. This device has a typical output imp.

TL1431-SP Datasheet (1.03 MB)

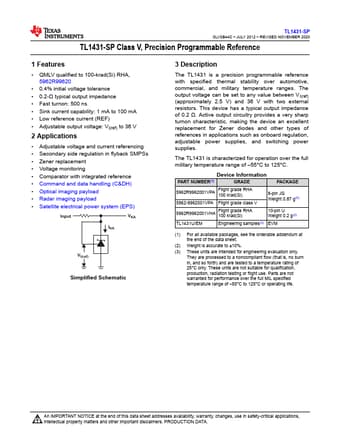

Preview of TL1431-SP PDF
